Laplace Equation Solver - Streamed

First

Previous

Next

Last

Index

Text

Slide 26 of 41

Notes:

First, let is revisit the Laplaces equation solver. Recall that SSP performance was about 30% of the T90 due to limited cache utilization

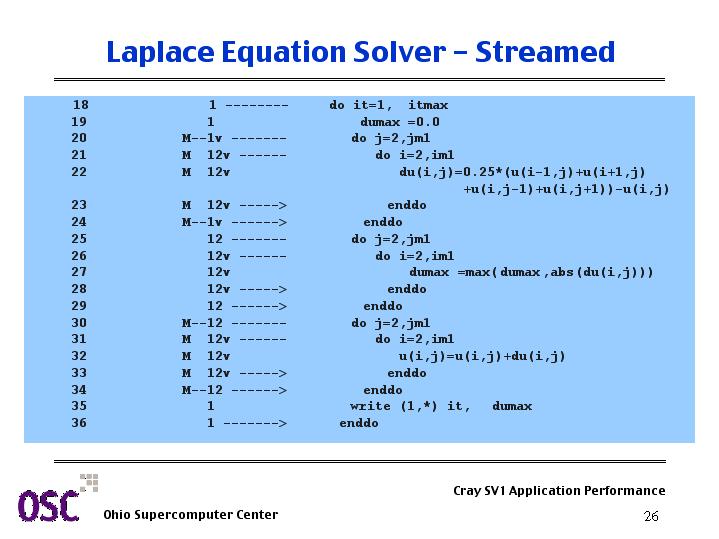

This is the loopmark listing with addntl annotations

3 additional MSP optimization;

1)loop @ 20 streamed

2)loop @ 30 streamed

3)loop @ 20 vectorized

Note that reduction operation @25 not streamed
